What Is Cover Block In Building Construction
A concrete cover block, often referred to simply as a cover block, is a small block made from concrete or other materials used to maintain a specific distance between the reinforcing steel bars (rebar) and the surface of the concrete in a reinforced concrete structure.
This distance, known as the “cover,” is crucial for protecting the rebar and ensuring the durability and integrity of the structure.
Concrete cover blocks are an essential component in reinforced concrete construction.
They ensure that the rebar is properly positioned and protected, enhancing the durability, strength, and longevity of the structure.
By maintaining the specified cover thickness, cover blocks play a critical role in preventing corrosion, enhancing fire resistance, and ensuring the overall performance of the concrete structure.
Here’s a detailed explanation of concrete cover blocks, their functions, types, and usage.
Functions of Concrete Cover Blocks
Ensuring Proper Cover Thickness
Cover blocks ensure that the rebar is positioned correctly within the formwork, maintaining the specified distance between the rebar and the concrete surface. This cover thickness is essential for protecting the rebar from environmental factors and ensuring the structural performance of the concrete element.
Corrosion Protection
By maintaining adequate cover, cover blocks protect the rebar from moisture, air, and chemicals that can cause corrosion.
Corrosion of rebar can lead to structural weakening and failure.
Fire Resistance
Proper cover thickness enhances the fire resistance of the structure.
The concrete cover acts as an insulating layer, protecting the rebar from high temperatures during a fire and maintaining the structural integrity of the building for a longer period.
Load Distribution
Accurate positioning of rebar with the help of cover blocks ensures even load distribution within the concrete, preventing localized stresses and potential cracking.
Bond Strength
Adequate cover enhances the bond strength between the concrete and the rebar, ensuring they work together effectively to bear loads and resist stresses.
What Is Grade of Cement
What is Cement And It’s Type
How to Check Quality of Brick
What is Brick
Types of Cover Blocks

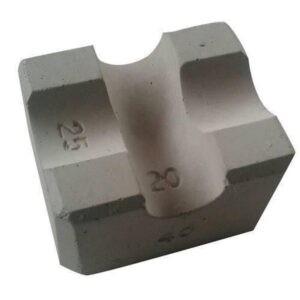

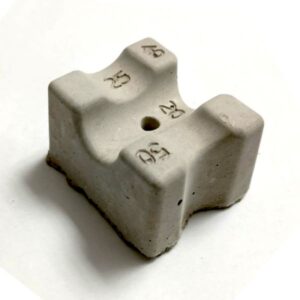

Concrete Cover Blocks
Made from high-strength concrete, these blocks are durable and provide excellent protection.
They match the material properties of the surrounding concrete, ensuring good bonding and compatibility.
Plastic Cover Blocks
These are lightweight, easy to handle, and available in various shapes and sizes.
Plastic cover blocks are non-corrosive and provide good insulation.
They are often used in less demanding environments or where weight and ease of installation are important.
Composite Cover Blocks
Made from a combination of materials such as concrete and plastic, these blocks offer the benefits of both materials. They are strong, durable, and easy to use.
Fiber-Reinforced Cover Blocks
These blocks incorporate fibers to enhance their strength and durability.
They provide additional protection against cracking and are suitable for harsh environments.
Standard Cover Thickness
The required cover thickness varies based on the type of structure, environmental conditions, and specific building codes. General guidelines include.
- For Beams and Columns :- 25-40 mm
- For Slabs :- 20 mm
- For Foundations :- 50 mm or more
- For Marine or Aggressive Environments :- Typically 50 mm or more
Installation of Cover Blocks
Positioning
Cover blocks are placed at regular intervals along the rebar to ensure consistent cover thickness.
They are positioned between the rebar and the formwork to maintain the specified distance.
Tying
Cover blocks are often tied to the rebar using binding wire to prevent displacement during the pouring and compaction of concrete.
Spacing
Proper spacing between cover blocks is essential to avoid concentrated stress points and ensure uniform cover.
The spacing depends on the size and shape of the concrete element and the rebar arrangement.
What Is Grade of Cement
What is Cement And It’s Type
How to Check Quality of Brick
What is Brick
Advantages of Using Concrete Cover Blocks
Corrosion Protection
Barrier Against Environmental Elements :- Concrete cover blocks ensure that there is an adequate layer of concrete between the reinforcing steel (rebar) and the external environment. This layer acts as a barrier, protecting the rebar from moisture, air, and aggressive chemicals (like chlorides and sulfates) that can cause corrosion.
Longevity :- By preventing corrosion, the structural integrity and lifespan of the concrete element are significantly extended.
Fire Resistance
Thermal Insulation :- Concrete has excellent thermal insulating properties. Adequate cover provided by cover blocks ensures that the rebar remains insulated from high temperatures in case of a fire.
Structural Integrity :- By maintaining the integrity of the rebar during a fire, the concrete structure can withstand high temperatures for a longer period, providing crucial time for evacuation and emergency response.
Load Distribution and Structural Performance
Accurate Rebar Positioning :- Cover blocks help maintain the correct position of rebar within the concrete, ensuring that it is evenly distributed. This accurate positioning is vital for the even distribution of loads and stresses throughout the concrete structure.
Prevention of Localized Stresses :- Proper rebar placement prevents localized stress concentrations, which can lead to cracking and structural failure.
Enhanced Durability
Protection from Physical Damage :- The concrete cover shields the rebar from physical damage during construction and service life, including impacts and abrasion.
Environmental Resistance :- Adequate cover enhances the concrete’s resistance to environmental conditions, such as freeze-thaw cycles, which can cause cracking and deterioration.
Improved Bond Strength
Composite Action: – The concrete cover ensures a strong bond between the concrete and the rebar, allowing them to act together as a composite material. This bond is essential for the structure to bear loads and resist stresses effectively.
Crack Prevention :- Proper cover reduces the likelihood of cracks that could compromise the bond between the concrete and the rebar.
Compliance with Building Codes and Standards
Regulatory Adherence :- Using concrete cover blocks ensures that the construction meets the specified cover thickness required by building codes and standards. This compliance is essential for the legal and structural integrity of the building.
Quality Assurance :- Adhering to standards guarantees the quality and performance of the construction over its intended lifespan.
Cost-Effectiveness
Reduced Maintenance and Repair Costs :- By preventing corrosion and other forms of deterioration, cover blocks minimize the need for costly repairs and maintenance over the structure’s lifespan.
Extended Service Life :- The use of cover blocks contributes to the overall durability and longevity of the structure, providing long-term cost savings.
Ease of Use
Simple Installation :- Concrete cover blocks are easy to install, making them a practical solution for ensuring correct rebar positioning and cover thickness.
Versatility :- Available in various sizes and shapes, cover blocks can be used in different types of concrete elements, including slabs, beams, columns, and foundations.
Enhanced Aesthetic Appeal
Surface Finish :- Properly positioned rebar with adequate cover results in a smooth and crack-free concrete surface, improving the aesthetic appeal of the finished structure.
